Windows and doors are essential elements of the building envelope, but the openings surrounding them can be among the most challenging areas to detail correctly.
Even when high-performance glazing and well-insulated walls are specified, the junction between the frame and the surrounding construction can introduce additional heat loss, air leakage and potential condensation risks.
Understanding these junctions is an important part of achieving reliable whole-building performance.

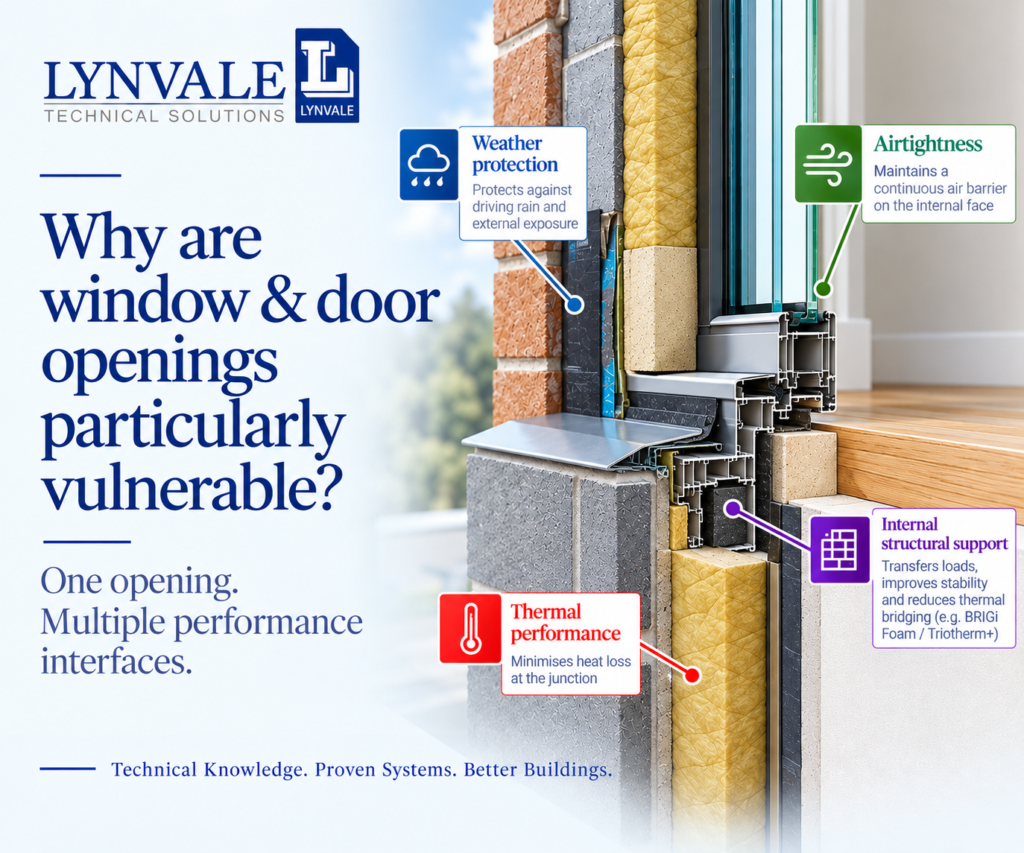

Why are window and door openings vulnerable?
A continuous wall construction is interrupted wherever a window or door is installed. At these openings, several different materials and building elements must connect while maintaining the intended thermal, structural and weather protection performance.
The challenge is not simply the performance of the window or door itself, but how it interfaces with the surrounding building envelope.
1. Interruptions in the insulation layer
Insulation works most effectively when it forms a continuous thermal layer around the building.
At window and door openings, the insulation must meet the frame, reveal, sill or threshold. Where this connection is poorly detailed, additional heat can flow through the junction, creating a thermal bridge.
The position of the frame relative to the insulation layer can significantly influence the thermal performance of the connection.
Positioning the frame within, or further towards, the insulation layer can help improve thermal continuity, provided the complete installation is appropriately designed.
2. Structural support and load transfer
Windows and doors must be securely supported, with loads transferred safely into the building structure.
This becomes particularly important where frames are positioned outside the conventional structural opening, such as within the external insulation zone.
The supporting arrangement must account for the frame loads, fixing configuration, substrate and installation geometry.
Structural performance and thermal performance therefore need to be considered together, rather than treating the mounting arrangement as a separate detail.
3. Airtightness around the frame
Uncontrolled air movement around window and door frames can contribute to heat loss and undermine the intended airtightness performance of the building.
The internal airtightness layer should connect continuously between the frame and the surrounding construction.
Particular attention is needed at corners, changes of substrate and interfaces between different materials, where discontinuities can be difficult to identify once the installation is complete.
Suitable sealing tapes, membranes and compatible connection materials can help establish a durable airtight connection when correctly specified and installed.
4. External weather protection
While the internal connection addresses airtightness, the external junction must also manage exposure to wind-driven rain and other weather conditions.
Sealing systems should accommodate the expected joint dimensions, movement and exposure conditions while supporting the moisture-management strategy of the overall construction.
The internal and external sealing functions should be considered as part of a coordinated window installation detail.
5. Sills and door thresholds
Sills and thresholds introduce further complexity because they combine structural support, drainage, weather protection and thermal continuity within a relatively confined area.
Door thresholds may also need to accommodate concentrated loads and accessibility requirements.
Without careful detailing, these areas can become significant thermal and airtightness weaknesses.
Considering the complete junction
Reliable window and door installation requires more than selecting a high-performance frame or a single sealing product.
The complete junction should address:
- Continuity of insulation around the opening
- Frame position relative to the thermal envelope
- Appropriate structural support and load transfer
- Continuous internal airtightness
- External weather protection and moisture management
- Thermal and structural detailing at sills and thresholds
These considerations should be coordinated during design and specification, rather than resolved independently during installation.
Further technical guidance
For a more detailed explanation of heat loss at building junctions, read our article What Is a Thermal Bridge? Understanding Heat Loss at Building Junctions.
Our Technical Hub guide to window positioning and thermal bridging also explores how the position of the frame and the use of pre-wall mounting systems such as Triotherm+ can help address the thermal performance of window-to-wall connections.
In our next technical article, we will look more closely at airtightness around window and door frames, including the importance of maintaining a continuous air barrier between different building elements.
